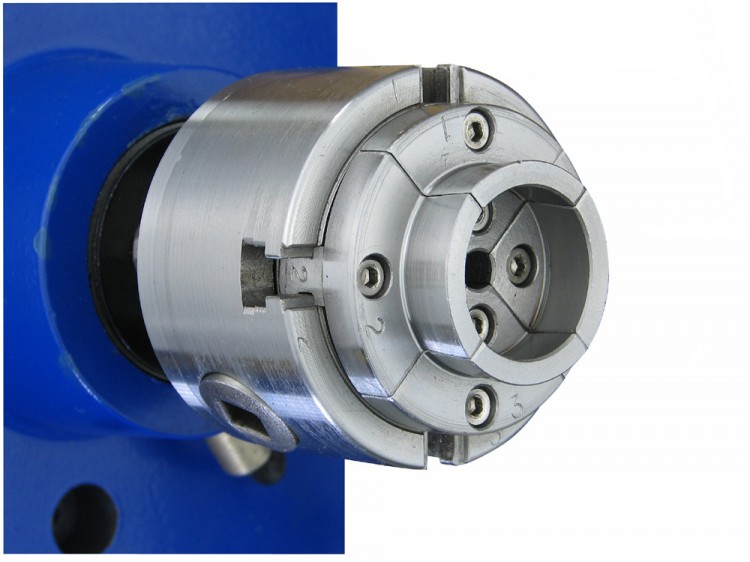

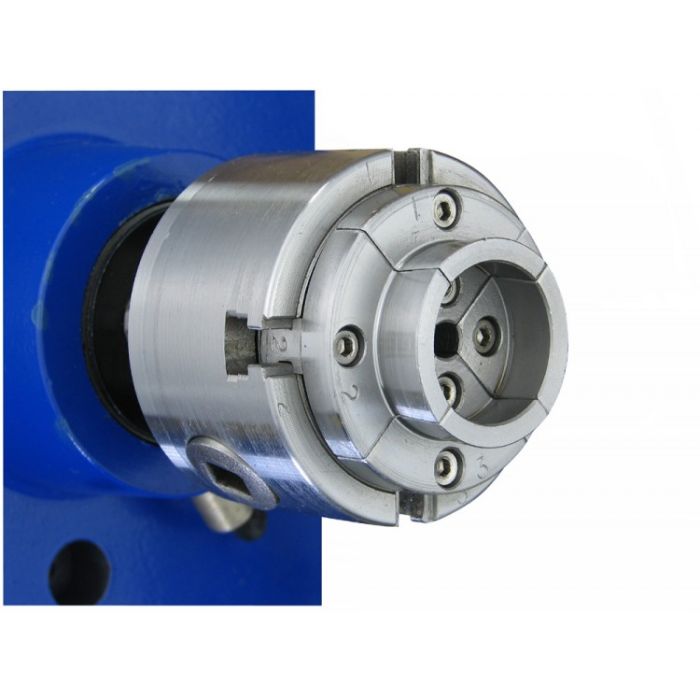

Charnwood (VIPER2) 4 Jaw Geared Scoll Chuck - 70mm Diameter
4 Jaw scroll chuck for woodlathes.
Part of the new Viper range from Charnwood. A compact scroll chuck, with the jaws adjusted by a geared mechanism for simple one handed operation. Self centring, high precision design. Ideal for Mini and Midi sized lathes.
The standard dovetail jaws can grip the workpiece both internally or externally depending on the style and shape of the piece to be turned.
The chuck fits directly onto lathes with headstock thread size 1'' x 8tpi.
We also include a wood screw which clamps into the centre of the chuck for the initial mounting of bowl blanks.
Supplied with dovetail jaws, wood screw, T-bar for locking the jaws and T-handled hex key for swapping the jaws.
We have an extensive range of optional jaws and accessories available for the Viper range of chucks.
Specification
Chuck Body Diameter 70mm
Depth of Thread 30mm
Jaw Movement 24mm
Standard Dovetail Jaw Expands from 38mm to 62mm
Standard Dovetail Jaw Contracts from 54mm to 30mm
Direct Thread 1'' x 8tpi
Weight 1050g
Rating Hobby
Warranty 1 Year
Viper2 can be mounted on a lathe of alternate thread size, 3/4'' x 16tpi or M33 x 3.5 using our optional inserts.
| Brand | Charnwood |
|---|---|
| SKU | 5060281697882 |
