Charnwood BD15 Belt & Disc Sander - 1" x 5"
A compact and well made combination disc & belt sander. Ideally suited to any small workshop and an excellent choice for model makers, toy makers, or anybody working with small components.
1" Wide Belt Sander
Tilting Work Table with Back Plate
2" Diameter Drum for Curved Sanding
5" Diameter Sanding Disc
Tilting Work Table With Mitre Fence
2 Dust Collection Outlets
A great value mini sander with a solid look and feel.
There are 3 different sanding stations on the machine:

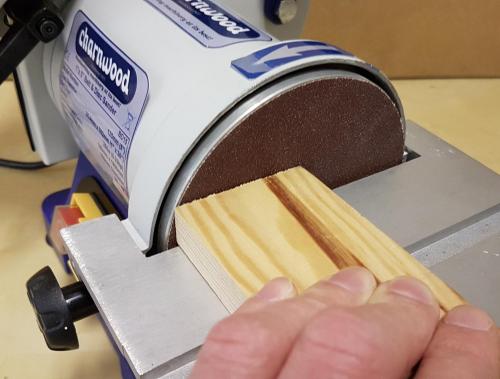

For sanding larger flat faces or end grain use the 5" diameter sanding disc. It is complimented by a solid one piece cast aluminium work table, hinged at both ends to allow a tilting function of up to 45 degrees. The work table also has a slot to mount a mitre fence which can be adjusted up to 60 degrees each way. Allowing mitred and compound angles to be sanded. A dust extraction outlet is provided to connect to a suitable vacuum or extractor.

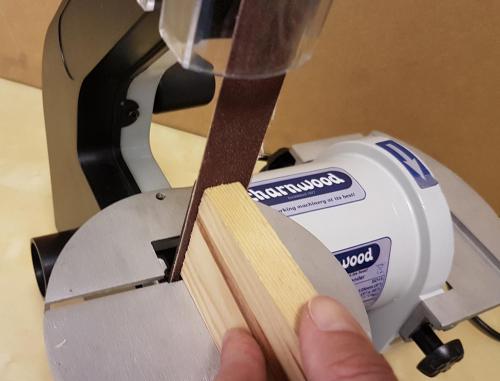

For edge sanding, profiling or sharpening tools, the belt sander is 25mm wide with a back plate to keep its shape. It has a solid one piece cast aluminium work table, hinged to allow tilting to 45 degrees. There is an adjustable stop provided to ensure it always goes back to 90 degrees.
Removing the top roller safety guard gives access to the sanding belt drum which can be used for sanding curved shapes.
The sander sits on 4 rubber feet to provide a stable platform. It can also be secured to a work bench using the 2 mounting points provided.
Supplied with mitre fence, 1 x 80 grit sanding belt, 1 x 80 grit self adhesive sanding disc, 2.0m power cable & UK 3 pin plug.
BD15 Specification
Disc Diameter 125mm (5”)
Belt Size 25mm x 762mm (1” x 30”)
Motor (Induction) 240v, 50hz 250w (0.33hp)
Motor No-Load Speed 2850rpm
Disc Sanding Table 185mm x 95mm
Table Tilt 90 – 45 degrees
Belt Sanding Table 150mm Diameter
Table Tilt 90 – 45 degrees
Acoustic power level 91.1db (A)
Acoustic pressure level 79.9db (A)
Dust Extraction Outlet x 2 45mm OD / 38mm ID
Overall Dimensions (WxDxH) 380mm x 300mm x 400mm
Shipping Dimensions 460mm x 330mm x 330mm
Weight 7.5kg
Assembly Time Required 5 Minutes
Rating Hobby
Warranty 1 Year
To connect to an extractor hose of 100mm diameter, use our 100/38RC adapter.
Charnwood recommend wearing a face mask or respirator during all sanding operations, even if a dust extraction system is in place. Don't take chances with your health.
| Brand | Charnwood |
|---|---|
| SKU | 5060486046850 |
